REEF-FRAME Concept

The REEF-FRAME line of popular-sized reef systems blends years of hobbyist input with precision engineering and forward-thinking design. All models feature eurobracing for added strength, ultra-clear glass bonded with high quality euro-silicone for long-lasting structural integrity, and new plywood cabinets designed to fully support the glass structure.



These beautiful aquariums provide a lasting frame, so you can create a stunning picture.

REEF-FRAME systems are available in a fully bare version for complete customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices.



Features:

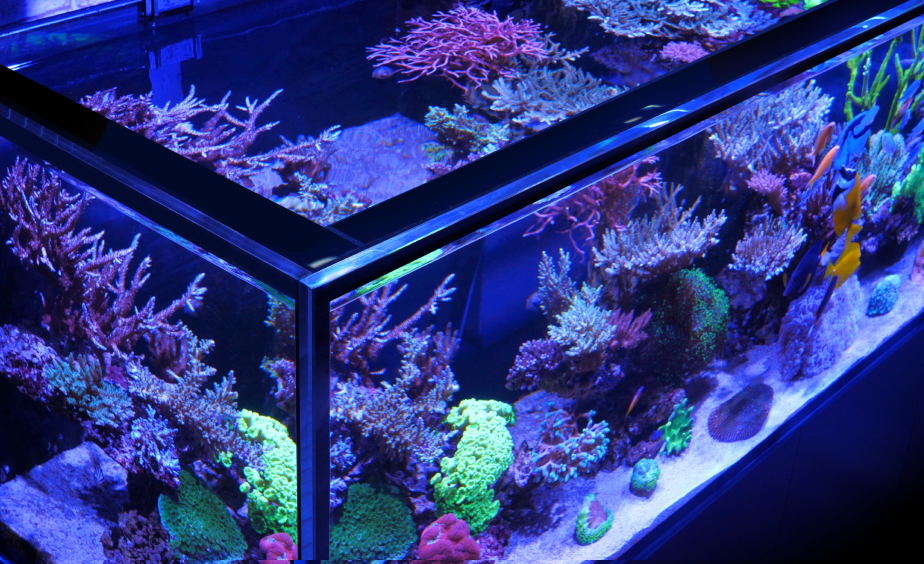

Eurobraced ultra-clear glass

REEF-FRAME aquariums are made of ultra-clear glass with increased thickness of up to 15 mm/0.59”, eurobraced for extra strength, and bonded with high quality euro-silicone for long-lasting, structural integrity.



10-15mm Ultra clear glass

(Thickness per model)



Extra fortified cabinet

REEF-FRAME aquariums are mounted on marine-spec plywood cabinets designed to support the full contour of the glass, with adjustable feet for perfect levelling. REEF-FRAME cabinets are also available in a classic oak finish in addition to black and white.

Laminated plywood cabinet

Adjustable feet

Stainless steel hinges



Pump return outlets

Curved return outlets and silent overflow box

REEF-FRAME systems feature 25 mm curved return outlets for optimal flow. The REEF-FRAME 350 and 500 models include dual return outlets for single or dual return pump systems. Return piping is concealed inside a large central overflow box with a large surface skimmer and removable comb sections for easy cleaning.

Dual return pump outlets

Highly effective surface skimming

Optimal water circulation



Surface skimmer

The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.



Silent downflow system

The downflow pipes are enlarged to promote quieter flow, with a rectangular profile for enhanced circulation.



ReefGate high-precision flow valve

REEF-FRAME systems include the new ReefGate, high-precision bespoke gate valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.



Hydrodynamically superior piping

REEF-FRAME systems feature hydrodynamically superior piping that maximizes circulation, with optional connector kits in both metric and USA sizes for piping customization.

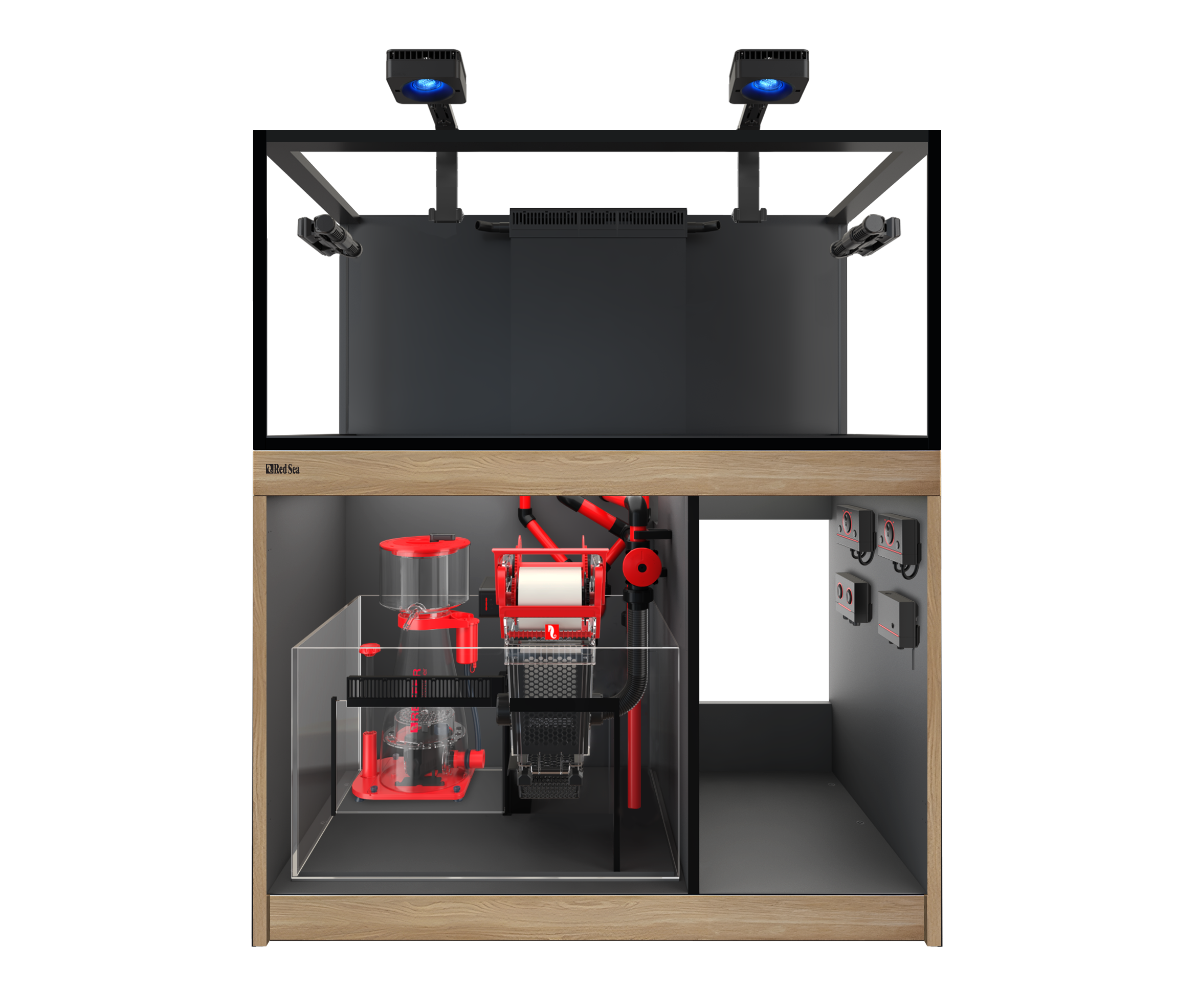

Reef Spec sump

The high-performance Reef Spec sumps include a dedicated skimmer chamber with adjustable water height, an optional sump divider for a dedicated refugium chamber (not available for the 170 model), a ReefMat-ready easily removable mechanical filtration compartment, and a bubble trap to prevent air bubbles from returning to the aquarium.



ReefMat-ready

The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 250/500/1200.

Easy setup

Easy maintenance

Solid state sensor



Register your REEF-FRAME within 90 days of purchase

And turn your standard 3-year warranty into 5 years, at no extra cost!



REEF-FRAME Model	170	250	350	500
Total Water Volume(gal)	46.2	65	93.4	136.3
Display Tank Water Volume(gal)	35.9	53.9	74.6	107
Sump Water Volume(gal)	10.3	11	18.8	29.3
Display Tank Length	23.6"	35.4"	47.2"	59.1"
Display Tank Width - Excluding light	20.1"	20.1"	21.6"	22.6"
Display Tank Height - Excluding light	20.9"	20.9"	20.9"	21.6"
Total System Height - Excluding light	53.9"	53.9"	53.9"	55.9"
Ultra-Clear front glass	0.39"	0.47"	0.47"	0.59"
Ultra-Clear side glass	0.47"	0.47"	0.59"	0.59"
Bottom Glass	0.39"	0.47"	0.47"	0.59"
Back Glass	0.31"	0.39"	0.47"	0.59"
Bracing	Eurobrace
Aquarium Support	Full Cabinet
Main System Pump	1x ReefRun G2 4000	1x ReefRun G2 4000	1x ReefRun G2 6000	1x ReefRun G2 8000
Water Circulation Pump	1x ReefWave 25	2x ReefWave 25	2x ReefWave 25	2x ReefWave 45
ReefLED light system	1x ReefLED G2 115 w/ Mounting Arm	2x ReefLED G2 115 w/ Mounting Arm	2x ReefLED G2 115 w/ Mounting Arm	3x ReefLED G2 115 w/ Mounting Arm
Return outlet nozzles	1x25mm(single pump)	1x25mm(single pump)	2x25mm(single or dual pump)	2x25mm(single or dual pump)
Hydrodynamic piping with Gate Valve	✅	✅	✅	✅
Protein Skimmer	1x Reefer DC Skimmer RSK 300	1x Reefer DC Skimmer RSK 300	1x Reefer DC Skimmer RSK 600	1x Reefer DC Skimmer RSK 600
Reefmat/Nanomat	1x ReefMat 250	1x ReefMat 250	1x ReefMat 500	1x ReefMat 1200
ReefControl Controller	ReefControl Pro
ATO Module	ReefControl ATO Module
Reefsense pH/Temp Probe	1x ReefSense pH/ temperature probe
