Description

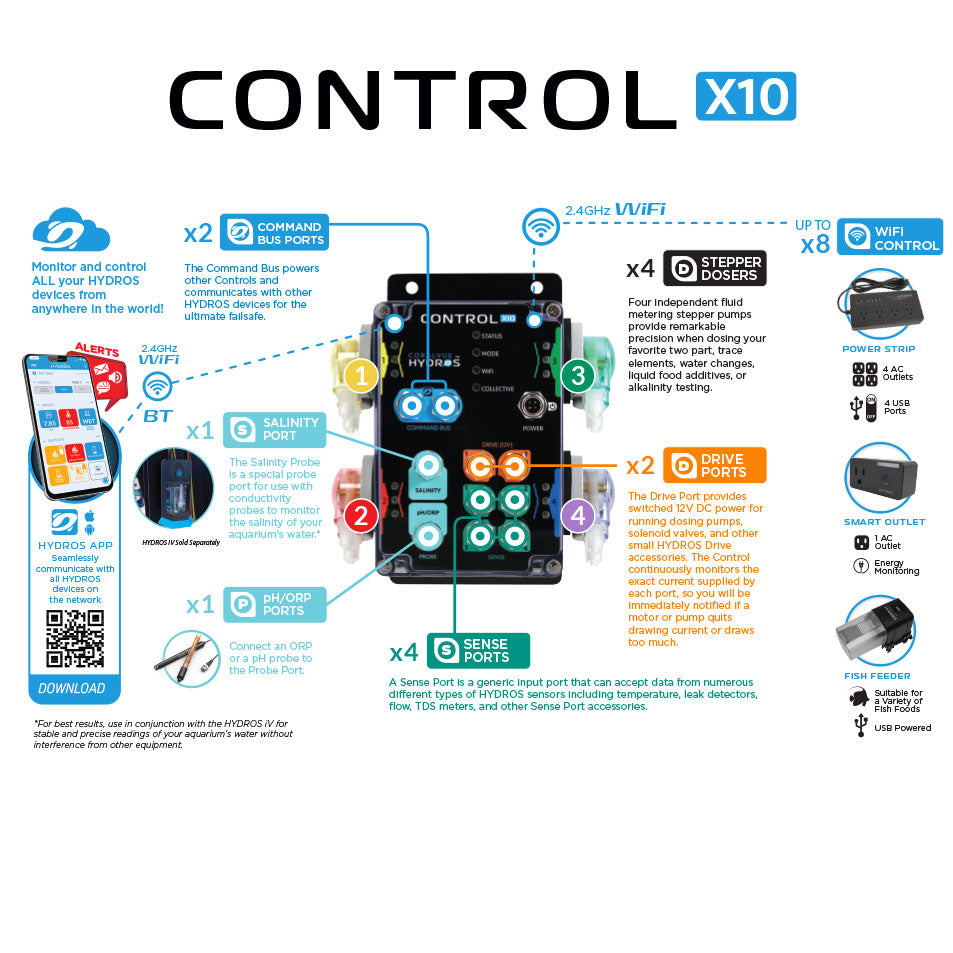

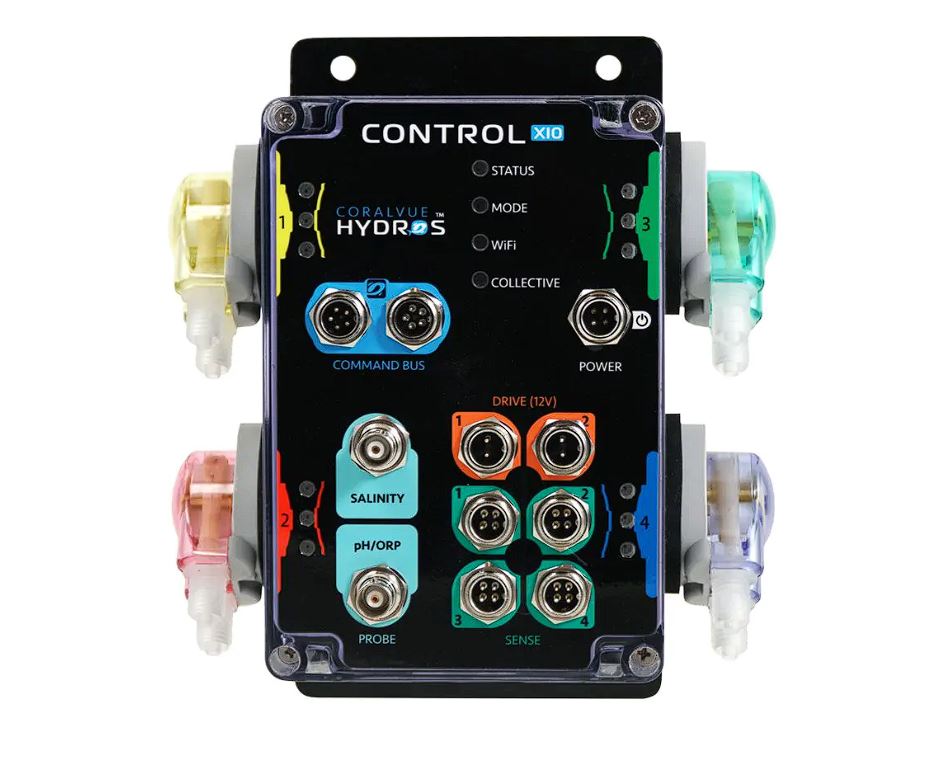

The Control X10 is the ultimate HYDROS system controller with twin Drive ports, four Sense ports, a pH/ORP port, a Salinity probe port, four stepper dosing motors, and the ability to control up to eight WiFi devices all integrated into one compact IP-65 rated controller.
A Whole New Level of Aquarium Monitoring and Control
About HYDROS Control X10
The Control X10 is a robust system controller offering a whole new level of capabilities. This compact yet powerful controller can perform all essential functions needed to maintain a healthy aquarium without the need for extra expensive modules. Set up is quick and easy, making this ideal for both beginner and advanced hobbyists. Just one Control X10 can monitor temperature, pH, ORP, salinity, temp, and water levels, to name a few. Featuring four Sense ports, two Drive ports, a pH/ORP port, and Command Bus, the Control X10 also includes the new and highly desired Salinity probe port, four stepper dosing pumps, and can power other Control devices.
It can be used as a standalone controller for saltwater aquariums, freshwater tanks, and pond applications, or it can be added to other HYDROS Controls to build a more extensive system. The Control X10 operates on a HYDROS Safety Net and is rated IP65 to keep your equipment and aquatic life alive and thriving. All HYDROS products are engineered, assembled, and supported in the USA.

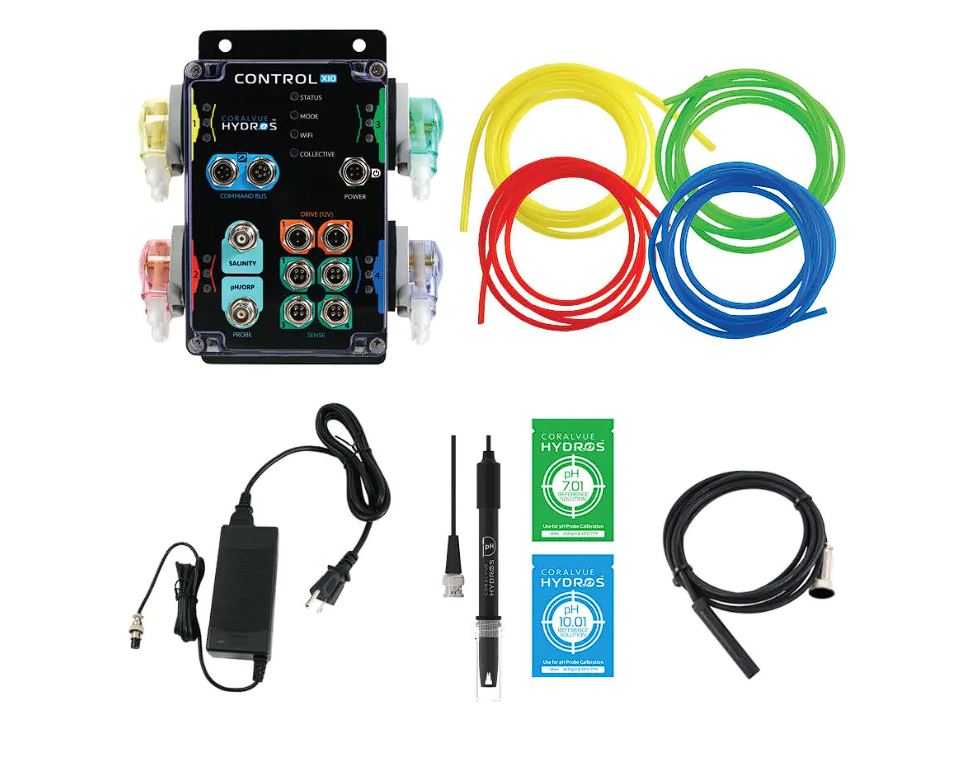

Control X10 Includes:
X10 Controller
Power Supply
pH Probe with Calibration Solutions
Temperature Sensor
X4- 10ft Dosing Tubing
Calibration Beaker
X10 Specifics
Dimensions (LxWxH): 7 3/4 x 6 3/4 x 4 1/4in
What you can expect from your HYDROS Smart Device
Control your HYDROS device(s) from anywhere in the world using the technologically advanced HYDROS cloud-based app
Ability to monitor and control your HYDROS device(s) locally through WiFi
A fast dual-core 32-bit processor that allows control decisions to be made within each device
User sets the Alerts and Notifications
Internal health monitoring to report voltages, currents, CPU status, and the internal temperature of each device
HYDROS Command Bus connections to transfer data and power to devices
Quick & Easy Setup
There is no complicated programming language to learn. If you can operate a smartphone, you can be the operator of a smart aquarium—tap, drag, press, or flick to adjust settings using intuitive icons and simple menus. Schedule each component in your aquarium life support system to run at a specific time, frequency, or intensity. You can also use real-time data and easily configure more complex actions.
IP-65 Rated – Splash Proof, Dust Proof, and Secure Connection
HYDROS devices look like industrial controllers because they are built to function in the harsh environment of a marine aquarium. The IP65-rated HYDROS enclosure and aircraft-style connectors ensure long-term reliability in the face of splashes and corrosive salt spray.
Command Bus - 2 Available
The Command bus communicates with other HYDROS devices for the ultimate failsafe and can also power other Control devices.
Drive Port - 2 Available
The Drive Ports provide switched 12V DC power for running small aquarium devices. The Control continuously monitors the exact current supplied by each port, so you will be immediately notified if a motor or pump quits drawing current or draws too much.
Each drive port can handle up to 1.5A and the entire device can handle up to 3A total.
Drive Ports Currently Support:
Auto Top-Off (ATO) pumps
Dosing pumps
Cooling fans
Cabinet LED lights
Solenoids - 1/4in water and CO2 control
Steering valves and relays
Stirrers
HYDROS IV
Sense Port 4 Available
The Sense Port is a new concept in aquarium parameter measurement. HYDROS devices include several Sense Ports. A Sense Port is a generic input port that can accept data from numerous different types of sensors.
Sense Ports Currently Support:
Temperature sensor - Either air or water
Fluid level - Optical sensors to measure fluid levels
Leak detection - Monitoring for both point and wide area leak detection
Flow rate - Measures the amount of fluid flowing through a pipe
Total dissolved solids - Dual measurement of the TDS levels from your RODI system
Salinity Probe Port - 1 Available
The Salinity Probe is a special probe port for use with conductivity probes to monitor the salinity of your aquarium's water. Salinity Probe Kit is not included but is required to monitor Salinity.
Isolated Testing Vessel
This add-0n ensures that the test sample is physically separated, preventing any electric interference from other equipment in the aquarium system. HYDROS iV is not included but recommended.
pH/ORP Probe Port - 1 Available
One of the most remarkable ports on the HYDROS Control X10 is the Probe Port. You can connect an ORP or a pH probe to the Probe Port but, this is no ordinary pH input! The circuitry is based on an ultra-high-quality input chip specifically designed for these types of probes. Each pH input provides digital galvanic isolation from the rest of the system. Galvanic isolation prevents interference with other accessories connected to the system like motors and pumps. Digital Galvanic isolation preserves the accuracy of the measurement by converting the signal to a digital domain before crossing the isolation threshold.
pH/ORP Probe Ports Currently Support:
pH Measurement
ORP Measurement
Alkalinity input from an external measurement system

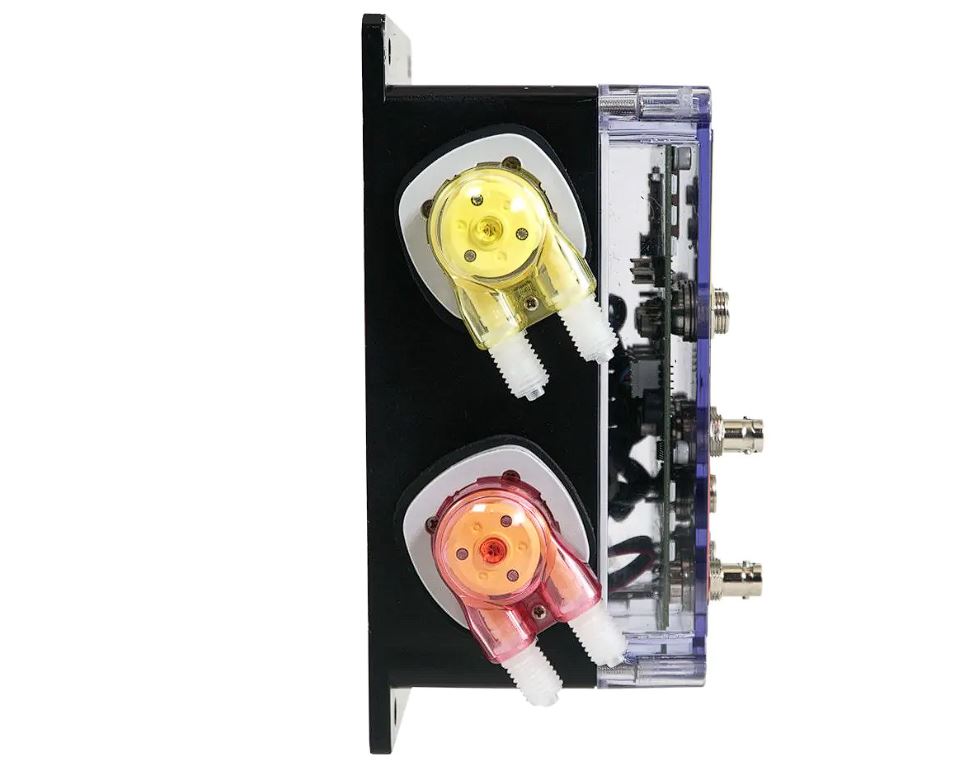

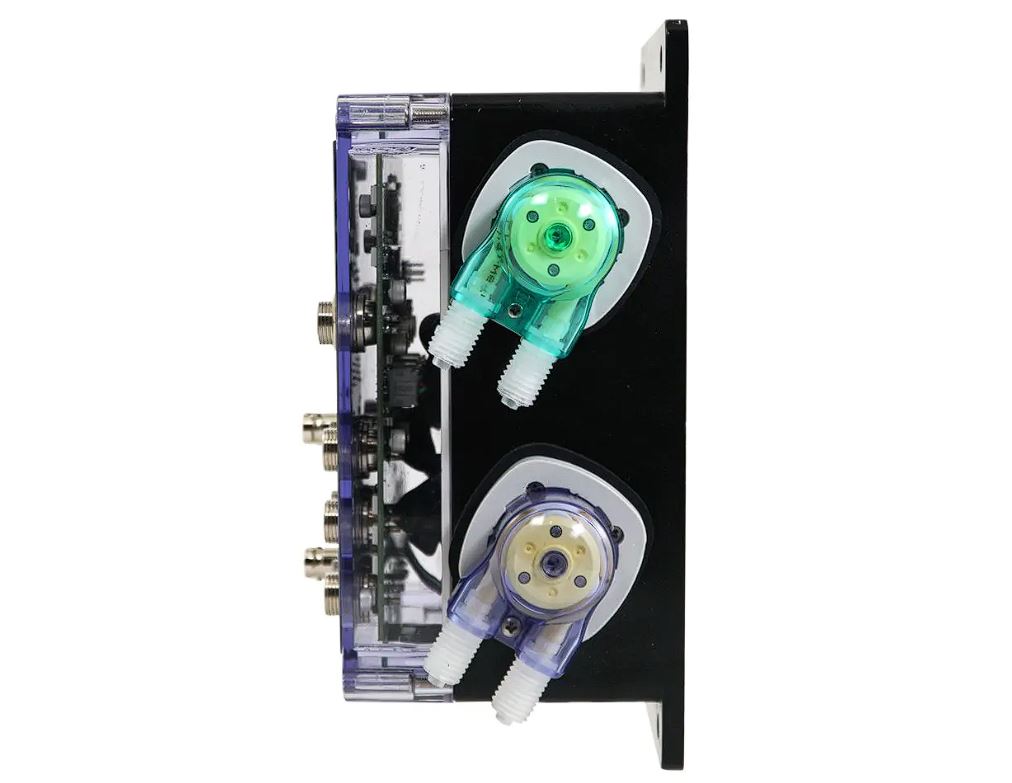

High Precision Stepper Dosers - 4 Available
4 independent fluid metering stepper pumps provide remarkable precision dosing your favorite two part, trace elements, water changes, liquid food additives, and alkalinity testing to name a few common uses.
Stepper Motor Features:
Quiet Operation
Exact Metering of Liquids
Color-Coded Dosing Heads and Tubing
Easy to Service
Control up to 8 WiFi Devices
The HYDROS App allows you to create rules and set schedules to control our 4-Outlet WiFi AC Power Strips and Smart Outlets. Quickly turn on or off different pieces of aquarium equipment like pumps, powerheads, lights, heaters, algae scrubbers, UV sterilizers, protein skimmers, and more.
WARRANTY
CoralVue, Inc. and HYDROS hereby guarantee this product to be free from defects in material and workmanship for a period of:
1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
To the product only as long as it remains in the possession of the original purchaser.
To the product that has not been subject to accident, misuse or abuse.
To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
