Uniseal 3/4
Uniseal 3/4
Uniseal 3/4"
sold in last hours
$2.99
Brand:
Uniseal
Availability:
Out of stock In stock
Title:
SKU:
AGS-U075
Visa PayPal Mastercard American Express
  • Description

    Will seal on the horizontal
     as well as the vertical
    		  UNISEALr Simply The World's Best Seal
    • Long Life
    • Easy To Install
    • Replaces And Outlasts
      Most Bolt-On Flanges


    UNISEALr to fit a vast array of
    pipe sizes. Special sizes can be
    manufactured under contract
    • Can save up to 70% in labour and material costs
    • A product for the future

    tank_seal.jpg clearpixel.gif

    Simple and easy to install
    		  UNISEALr Can Withstand:-
    • Pressure & Suction
    • Acids & Oils
    • Greases & Gasoline
    • Sewerage & Waste
    • Heat & Cold

     Wall thickness - 1/8" to 1/2" (3mm to 12mm)

    Part #

    DN#

    Pipe ID

    Pipe OD

    Holesaw Size

    U018



    3/16"

    0.250"   06mm

    0.375"   10mm

    U025

    1/4"

    0.375"   10mm

    0.50"  12.7mm

    U038

    10

    3/8"

    0.675"   17mm

    1.00"  12.7mm

    U050

    15

    1/2"

    0.840"   21mm

    1.25"  31.7mm

    U075

    20

    3/4"

    1.050"   27mm

    1.25"  31.7mm

    U100

    25

    1"

    1.315"   33mm

    1.75"  44.4mm

    U125

    32

    1-1/4"

    1.660"   42mm

    2.00"  50.8mm

    U150

    40

    1-1/2"

    1.900"   48mm

    2.50"  63.5mm

    U200

    50

    2"

    2.375"   60mm

    3.00"  76.2mm

    U300

    80

    3"

    3.500"   89mm

    4.00"  101.6mm

    U400

    100

    4"

    4.500"   114mm

    5.00"  127mm

    U600







    6"

    6.625"   168mm

    7.00"

    U600-35
    6"
    6.299"   160mm
    7.00"  178mm

    U400-35

    4"

                     110mm

    5.00"  127mm

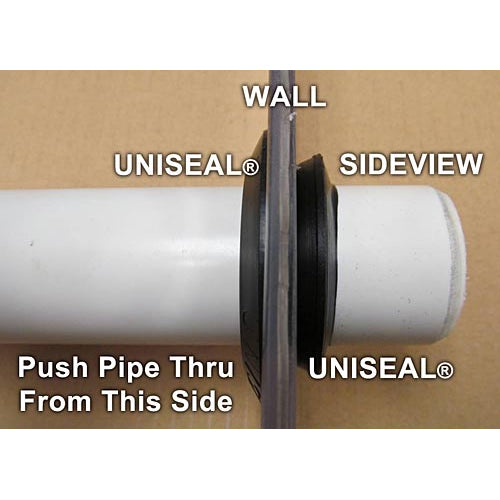

    Instructions For Using UNISEALr

    1. Cut hole to the Holesaw size indicated for the UNISEALr you are using
    Example 3" UNISEALr = 4" Hole (Holesaw)

    2. Ensure the hole is clean cut with sharp edges. Irregularities could cause
    poor seating and ultimate leakage.

    3. Insert UNISEALr into hole with the wideside facing the pipe to be inserted.

    4. Make certain that the pipe end to be inserted is clean cut. File the edges so
    that there are no sharp points to cut the UNISEALr

    5. Using Detergent, lubricate the outside of the pipe end to be inserted, then
    push the pipe through the UNISEALr from the large flange side.
    The detergent will be squeezed off as the pipe passes through the UNISEALr
    The co-efficient of friction of the rubber holds the pipe tightly in place.

  • Additional information
    Vendor: Uniseal
    SKU: AGS-U075
