REEFER Concept
The perfect reefscaping canvas

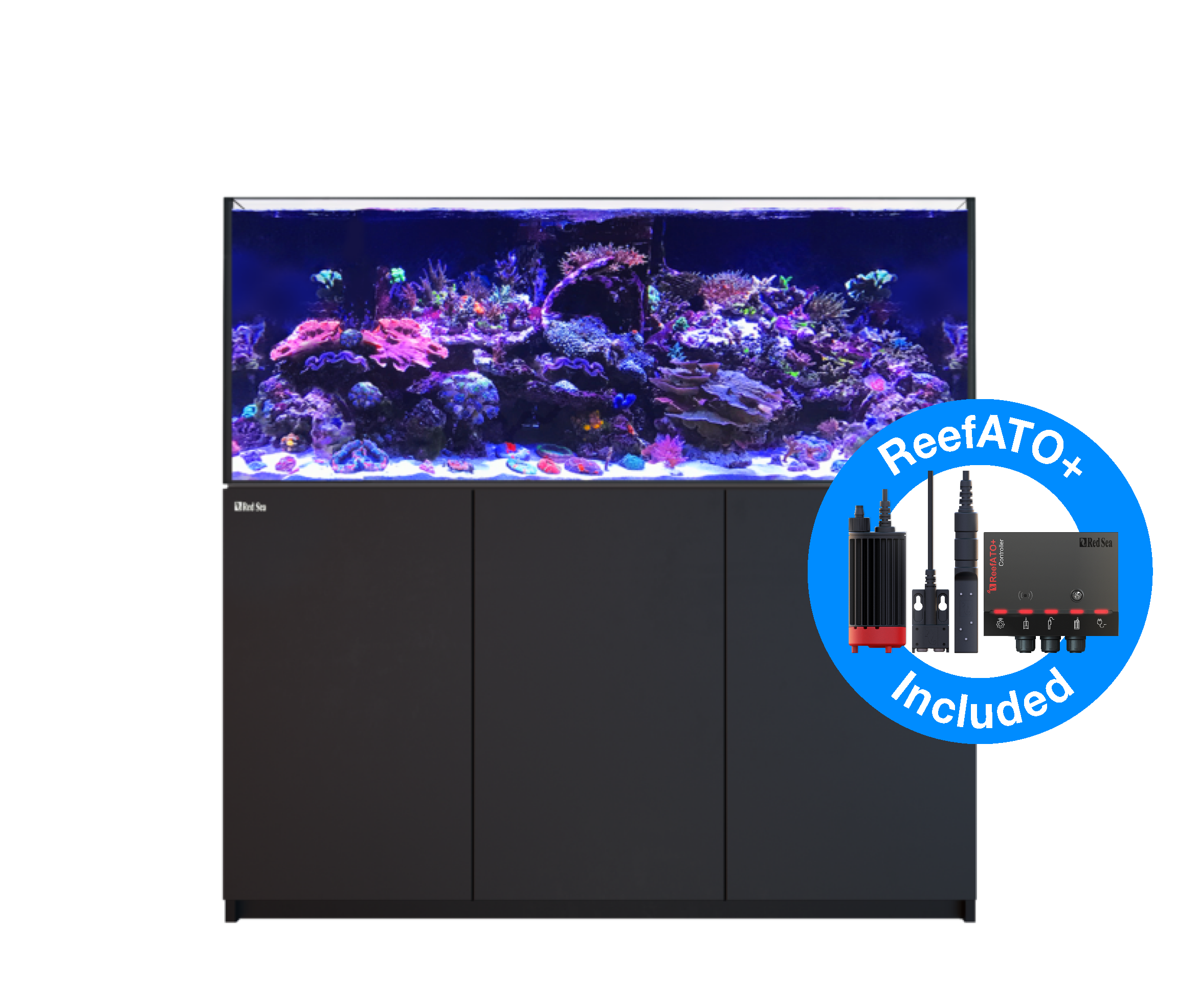

REEFER G2+ systems come with new & improved water management, extra-fortified cabinets & aquariums, ReefMat-ready sumps, the ReefATO+ system as standard and an optional 5-year extended warranty. They are the ideal platform for the full “Red Sea Experience”, combining our smart devices into one synchronized ecosystem operated via the ReefBeat App.
Features:
1. Rimless ultra-clear glass
REEFER G2+ aquariums are rimless, and constructed from ultra-clear, beveled-edge glass with increased thickness of up to 19 mm or 0.75”.
2. Extra fortified plywood cabinet
The marine-spec laminated cabinets follow the contour of the glass, and are now all fortified and made of plywood. The “floating tank” feature is now reinforced with front aluminum supports on all REEFER 625 G2+ models and bigger.
3. Dual return pump outlets
All REEFER 350 G2+ models and bigger now have dual side-facing return pump outlets, creating an even better water distribution.
4. Surface skimmer
The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.
5. Silent downflow system
The enlarged rectangular inlet to the downflow pipe (on models up to REEFER 625) reduces turbulence, making it easier to regulate.
6. Assembly-ready piping
All pipes are preformed with quick connectors at all joints (no gluing required). Bulkhead connectors suitable for both Metric and USA standard pipes can be purchased separately, allowing you to customize your sump piping.
7. High precision valve
All models now have a new and improved high precision valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
8. Professional REEF-SPEC sump
The professional sump includes a removable mechanical filtration media compartment (with micron filters & filter cups), an optional refugium compartment, an adjustable height skimmer chamber for optimal skimmer performance, and a bubble trap to prevent air bubbles from returning to the aquarium.
9. ReefMat-ready
The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 250/500/1200.
10. ATO+
All REEFER G2+ models come with the state-of-the-art ReefATO+, which keeps your water volume and salinity stable, and includes an accurate temperature monitor as well as a highly sensitive leak detector. *Reservoir not included.
11. Chiller & hardware chamber
Most models come with an additional chamber that can be used for a chiller, controllers and other equipment.
Rimless ultra-clear glass
REEFER G2+ aquariums are rimless, and constructed from ultra-clear, bevelled-edge glass with increased thickness of 10-19 mm or 0.75”.
3 Year Standard Warranty - 5 Year Extended warranty plan options
Tank Specs:
|
REEFER 170 G2+
|
REEFER 200 G2+
|
REEFER 250 G2+
|
REEFER 300 G2+
|
REEFER 350 G2+
|
REEFER 425 G2+
|
REEFER 525 G2+
|
REEFER 625 G2+
|
REEFER 750 G2+
|
Total system
water volume(gal)
|
43.6 |
52.8 |
64.8 |
79.3 |
90.3 |
114.4 |
142.7 |
163.8 |
198.1 |
Display tank
water vol.(gal)
|
33.8 |
41.7 |
53.6 |
65 |
72.1 |
90.6 |
111.7 |
131.3 |
158.5 |
In-Cabinet sump
water vol.(gal)
|
9.8 |
11 |
11 |
15 |
18 |
24 |
31 |
32 |
40 |
Display tank
Length
|
23.6 " |
23.6 " |
35.4 " |
35.4 " |
47.2 " |
47.2 " |
59.1 " |
59.1 " |
70.9 " |
Display tank
width
|
19.7 " |
22.6 " |
19.7 " |
22.6 " |
19.7 " |
23.6 " |
23.6 " |
25.6 " |
25.6 " |
Display tank height
(excluding light unit)
|
20.1 " |
20.9 " |
20.9 " |
21.7 " |
20.9 " |
21.7 " |
21.7 " |
23.6 " |
23.6 " |
Total system height
(excluding light unit)
|
53.9 " |
55.1 " |
55.1 " |
55.9 " |
55.1 " |
55.9 " |
55.9 " |
58.3 " |
58.3 " |
Ultra-clear front glass
|
0.59 " |
0.59 " |
0.75 " |
0.75 " |
0.47 " |
0.47 " |
0.59 " |
0.75 " |
0.75 " |
Ultra-clear side glass
|
0.59 " |
0.59 " |
0.75 " |
0.75 " |
0.59 " |
0.59 " |
0.59 " |
0.75 " |
0.75 " |
Bottom glass
|
0.59 " |
0.59 " |
0.75 " |
0.75 " |
0.47 " |
0.47 " |
0.59 " |
0.59 " |
0.75 " |
Water circulation
|
Not included |
Main system pump
|
Not included |
Protein Skimmer
|
Not included |
ReefMat / NanoMat
|
Not included |
ReefATO+ kit
|
Included |
Slide out control panel
|
Not included |
Not included |
Slide-out control
panel 60 Included |
Slide-out control
panel 60 Included |
Not included |
Not included |
Not included |
Not included |
Not
included
|
