Abyzz A200-10M DC Water Pump

$2,749.99

Brand:

Abyzz America

Availability:

Out of stock In stock

Drop Ship

SKU:

CV-VA-A200-10

Description

The innovative Abyzz A200 pump with its titanium impeller consists of powerful and programmable menu-controlled electronic driver and a sinusoidal three-phase synchronous motor (pump).

The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power hungry higher voltage pumps.

The menu controlled driver and motor run on an mere 12V and because of that it can be used in a myriad of applications.

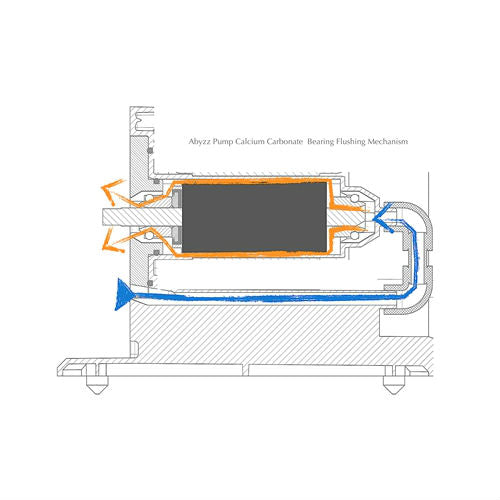

The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special hard metal shaft, this feature provides for low-maintenance operations.

The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, ensure a long operational lifetime, and meet the most demanding requirements and highest quality standards.

This product was developed and is manufactured in Germany by Venotec.

Features

Variable speed range (0 - 100%)

MCFS® (Menu Controlled Flow Sequencer) for random, wave etc.

BOOSTMODE® integrated

Comprehensive safety functions (e.g. dry run, temperature sensor, and overload protection)

Soft startup

Bus-enabled interface for peripheral devices

Lockable plug contacts

Low-noise operation

Operating Voltage: 12V

BOOSTMODE® max flow rate: 4,400 gph / 17,000 lph

Normal mode max flow rate: 3,750 gph / 14,000 lph

Discharge Flow Speed: max 5.4 m/s, nominal 4.6 m/s

Delivery height: max 28.6 ft / 8.8m

Rated input: 4W-200W

Input voltage: 110V~ @ 60Hz

Operating Voltage: 12V

Ambient temperature range for operation: 35.5°F - 104°F / +2°C - 40°C

Maximum operating pressure: 21.75 psi / 1,5 bar

Maximum immersion depth: 6.5 ft / 2m

Pump cable length: 32.5 ft / 10m

Inlet/outlet connections: 50mm/40 mm (suitable for PVC/AVB adhesive fittings)

In The Box:

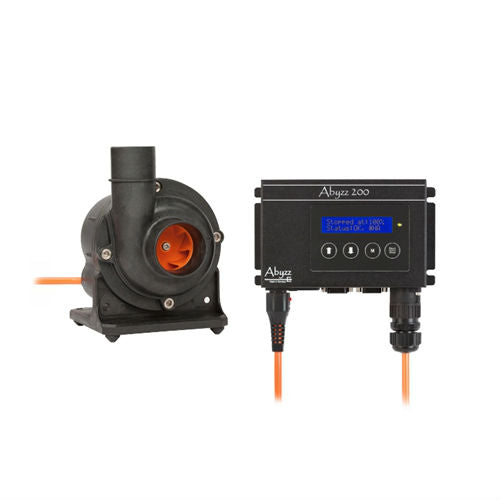

Abyzz A200 pump and 110V 60Hz driver

Power cable: 5 ft / 1.5m

Driver/Controller connecting cable: 6.5 ft / 2 meters

Operating manual
