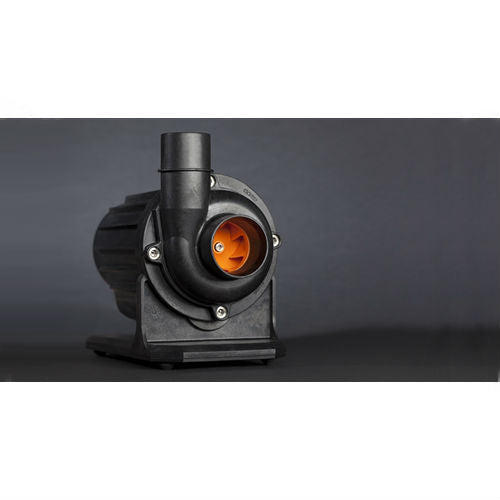

Abyzz A100-2M DC Water Pump

$2,199.99

Brand:

Abyzz America

Availability:

Out of stock In stock

Drop Ship

SKU:

CV-VA-A100

Description

The innovative Abyzz A100-2M-90V/240V includes all the quality and features of the bigger Abyzz pumps in a very compact and powerful package. Featuring a titanium impeller, powerful and programmable menu-controlled electronic driver, and a sinusoidal three-phase synchronous motor (pump), the A100 is in a class of it's own in terms of size and performance.

The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power hungry higher voltage pumps.

The menu controlled driver and motor run on an mere 12V and because of that it can be used in a myriad of applications.

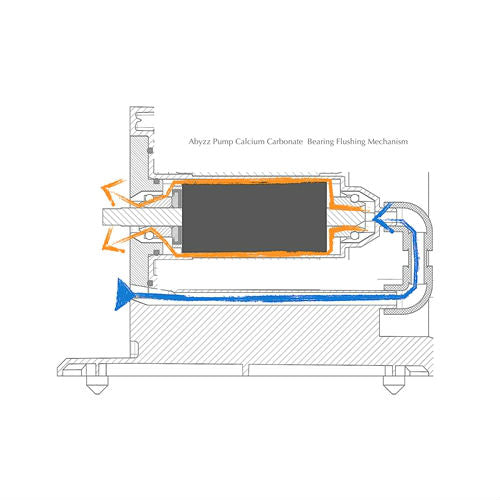

The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special hard metal shaft, this feature provides for low-maintenance operations.

The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, ensure a long operational lifetime, and meet the most demanding requirements and highest quality standards.

This product was developed and is manufactured in Germany by Venotec.

Features

Variable speed range (0 - 100%)

MCFS® (Menu Controlled Flow Sequencer) for random, wave etc.

BOOSTMODE® integrated

Comprehensive safety functions (e.g. dry run, temperature sensor, and overload

protection)

Soft startupBus-enabled interface for peripheral devices

Lockable plug contacts

Low-noise operation

Operating Voltage: 12V

Removable motor stand

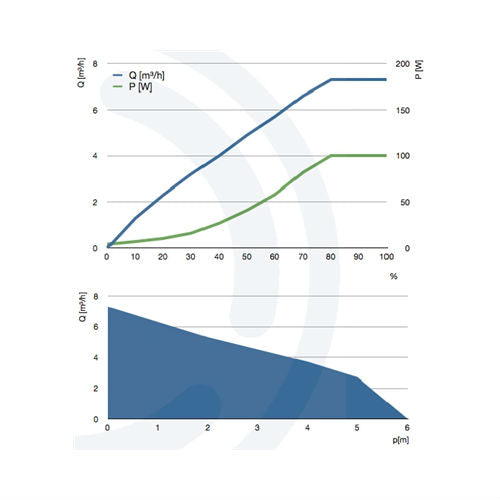

BOOSTMODE® max flow rate: 2,200 gph / 8,500 lph

Normal mode max flow rate: 1880 gph / 7,300 lph

Delivery height: max. 19.5 ft / 6.0 meters

Rated input : 5-100W

Input voltage: 90V-240V~ @ 50-60Hz

Operating Voltage: 12V

Ambient temperature: 35.6°F - 104°F +2°C...+40°C

Maximum operating pressure: 17.4 PSI / 1,2 bar

Maximum immersion depth: 6.5 ft / 2 meters

Pump cable length: 6.5 ft/ 2m

Inlet/outlet connections: 40mm/25mm (suitable for PVC/AVB adhesive fittings)

In the Box:

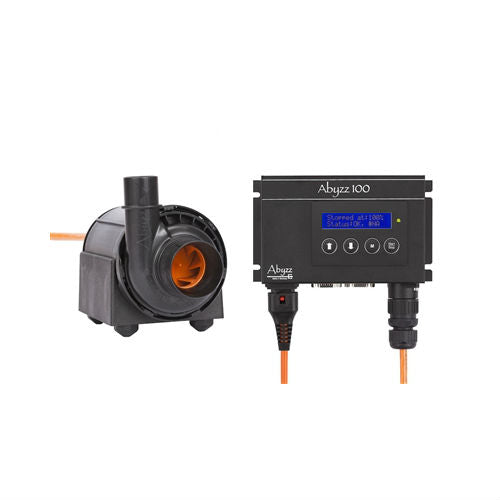

Abyzz A100 pump and 90V/240V driver

Power cable: 5 ft / 1.5m

Driver/Controller connecting cable: 6.5 ft / 2 meters

Operating manual
