Drop-In Chiller for aquariums, hydroponic systems, and water applications requiring flexible installation

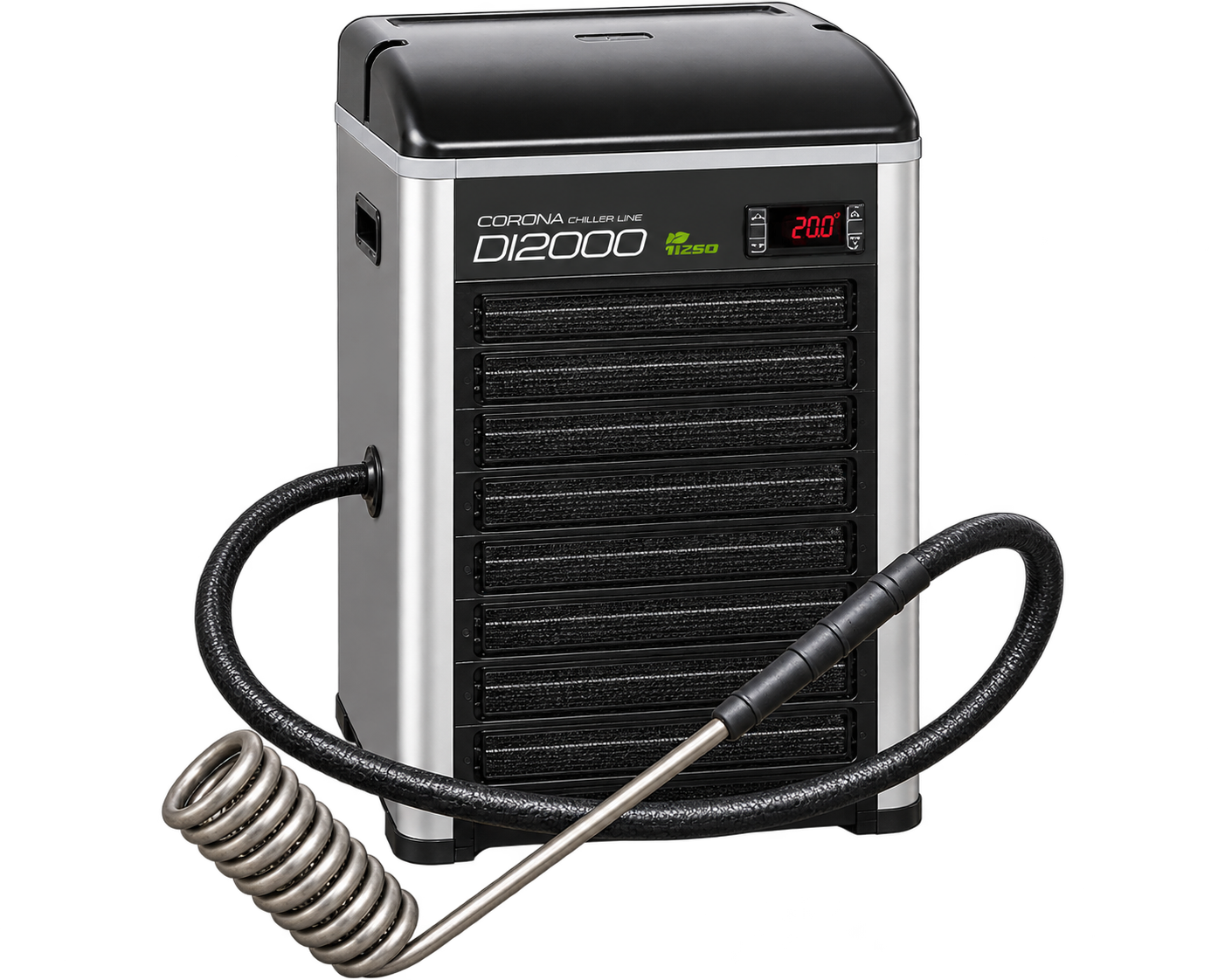

Our NEW TECO DI-2000 Drop-In Chiller introduces a revolutionary approach to water cooling by eliminating the need for plumbing modifications or inline installation. Utilizing a corrosion-resistant titanium heat exchanger coil that is placed directly into the water, the DI-2000 provides efficient and reliable temperature control while offering installation flexibility.



Designed for aquariums, hydroponics, aquaculture systems, temporary installations, and retrofit applications, the DI-2000 is ideal for users seeking a simple plug-and-play cooling solution. The compact design allows the chiller to be installed without disrupting existing filtration or circulation systems, making it one of the easiest cooling solutions available today.



Powered by TECO's advanced refrigeration technology and environmentally friendly R290 refrigerant, the DI-2000 delivers exceptional cooling performance while reducing energy consumption and environmental impact.



R290 BENEFITS

Reduces energy consumption by 30% to 50%

Replaces traditional ozone-damaging refrigerants

Scores 3 out of 150 on the Global Warming Potential (GWP) scale

Environmentally responsible cooling technology



DROP-IN TITANIUM HEAT EXCHANGER

The high-efficiency titanium coil is designed to be submerged directly into the water, providing excellent heat transfer and maximum corrosion resistance in both freshwater and saltwater applications.



EXTERNAL TEMPERATURE PROBE

Unlike traditional chillers that monitor temperature internally, the DI Series features an external temperature probe that continuously measures the actual water temperature within the aquarium, sump, or reservoir. This allows for more accurate temperature monitoring and improved cooling control, helping maintain a stable environment for aquatic life and sensitive growing systems.



NO PLUMBING REQUIRED

Unlike traditional inline chillers, the DI-2000 requires no plumbing modifications, fittings, or dedicated water connections. Simply position the titanium coil in the sump or reservoir and begin cooling.



FLEXIBLE INSTALLATION

Perfect for existing aquariums, hydroponic reservoirs, aquaculture systems, temporary setups, and emergency cooling applications. The drop-in design allows for fast installation and easy relocation when needed.



DIGITAL TEMPERATURE CONTROL

Intuitive electronic thermostat provides precise temperature management with accurate monitoring and dependable operation. Displays in °F or °C for user convenience.



DURABLE TECO CONSTRUCTION

Built with the same premium quality and reliability that has made TECO chillers the preferred choice of aquarium professionals worldwide. Corrosion-resistant materials and high-quality components ensure years of dependable performance.



Aquarium Size between 130 and 500 gallons

Horsepower 1/3 HP

Wifi Capable Yes

Minimum Flow Rate 159 gallons per hour

Water Inlet/Outlet Thread N/A

Inlet/Outlet Barb Fitting N/A

Exchanger Titanium

Supply 115V-60Hz

Gas/Refrigerant R290

Minimum Set Point 41°F

Maximum Set Point 86°F

Optimal Working Range 65°F - 85°F

Weight 44.8 lbs (20.3kg)

Dimensions 12.2in x 12.2 in x 19.69 in



Cooling Performance

The ability of the DI-2000 to pull down temperatures in a 86°F room:



Aquarium Size Temp. Attainable Heating Load Net Pull-Down C.O.P.*

530 gallons 77°F 1.89 Watts/gal 9°F cooler       2.2

105 gallons 47°F 0.38 Watts/gal 39°F cooler 1.4

* Coefficient of Performance (COP) - a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load)
